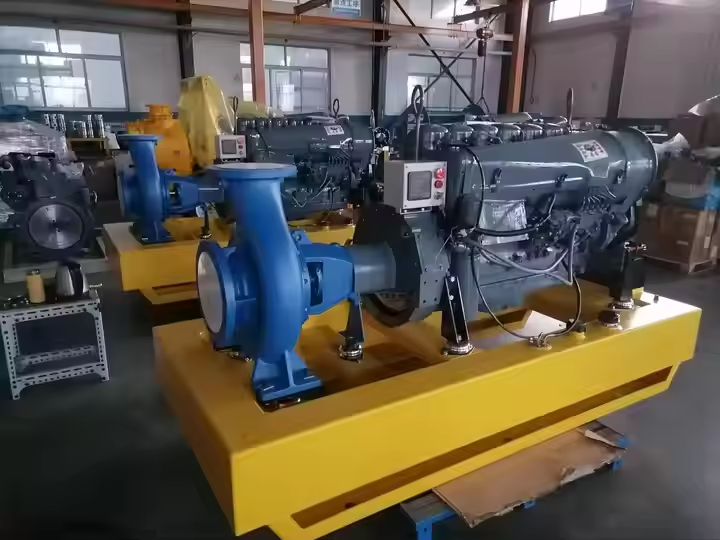

- Agricultural irrigation industrial pumping diesel water pump set 6 inch pumping dirty water for irrigation: Pump units adopt advanced technology and design to achieve efficient fluid transportation and reduce energy consumption. Many modern pump units are also equipped with frequency converters, allowing the pump's speed to be adjusted according to needs, which helps avoid energy waste.
|
Pump Datasheet
|
|
|
Pump flow rate
|
100m3/h
|
|
Pump head
|
120m
|
|
Size
|
100mm*65mm
|
|
Power
|
51kw/2500rpm
|
|
Engine Datasheet
|
|
|
Model
|
F4L912
|
|
Bore*stroke
|
100mm*120mm
|
|
Power
|
51kw
|
|
Speed
|
2500rpm
|
|
Displacement
|
3.770 Liters
|
|
Compression ration
|
17
|
|
Cooling way
|
air cooled
|
|
Combustion system
|
direct injection
|
|
Aspiration
|
natural intake
|
|
Fuel consumption ratio
|
236.6g/kwh(limit value)
|
|
Oil consumption ratio
|
2.04g/kwhh(limit value)
|
|
Lubricant capacity
|
9.5L Liters
|
1. Durability and Long Service Life
Modern pump units are designed with high-strength materials and robust construction to withstand harsh operating conditions. This results in a longer service life and less frequent need for replacements or repairs, offering better value over time.
2. Improved Safety
Many pump units come with built-in safety features such as pressure relief valves, thermal overload protection, and automatic shutdown systems. These safety mechanisms help prevent potential accidents, system damage, or operational hazards.
3. Flexibility in Configuration
Pump units can be configured in a variety of ways, such as single-stage or multi-stage pumps, and can be designed to operate in parallel or series, depending on the required flow and head. This flexibility allows them to be tailored to specific system requirements, whether for high-pressure or high-flow applications.
4. Low Vibration and Noise
Advanced pump technologies and careful design ensure that modern pump units operate with minimal vibration and noise. This not only improves the comfort of the working environment but also extends the lifespan of the equipment by reducing wear and tear.
5. Quick Start-up
Many pump units are designed for quick and smooth start-up, reducing downtime and improving overall productivity. This is especially important in industries where time-sensitive processes depend on the immediate availability of pumped fluids.
