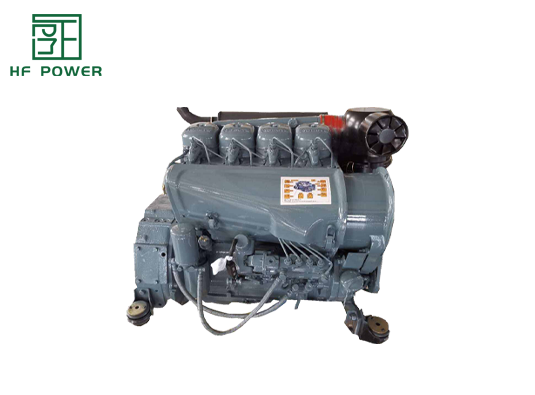

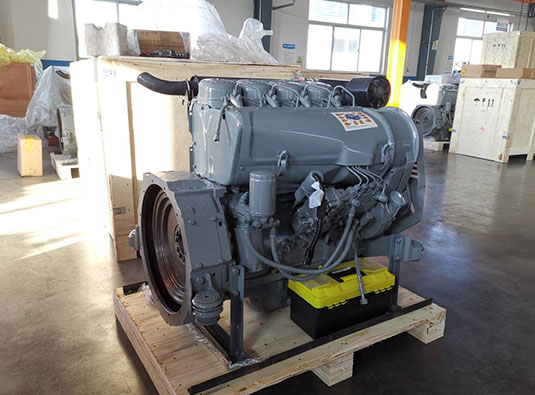

Deutz engine F4L912

Cylinder Number: 4 cylinder
Combustion Type: Direct injection
Bore×Stroke: 100mm×120mm
Cooling Way: Air cooled
Displacement: 3.770 Liters
Compression Ration: 17：1
Usage: Construction machinery, agriculture machinery, generator set, water pump, marine

Get Price Contact Download

share to :

Product Description Technical Data About Product About the Company

Product Description:

Deutz engine f4l912, 4 cylinder air cooled engine with reliable quality and small volume, light weight, low fuel consumption, low noise, long life service, easy maintenance, widely used for construction machinery, Construction machinery, agriculture machinery, generator set, water pump, marine. Cold-starting ability even under extreme climatic conditions.

Technical Data:

In-line, 4Cylinder, 4 Cycle Diesel Engine
Bore×Stroke			100mm×120mm
Displacement			3.770 Liters
Compression Ration			17:01
Cooling Way			Air cooled
Combustion system			Direct injection
Inspiration			Natural intake
Direction of rotation			Counterclockwise(face to flywheel end)
Fuel consumption ratio			236.6g/kwh(limit value)
Oil consumption ratio			2.04g/kwh(limit value)
Lubricant Capacity			9.5Liters
Net Weight			400kg
Overall Dimension(L×W×H)			852mm×664mm×799mm
(Useage)	(Power class)	(Power)	(Speed)(rpm)
(Useage)	(Power class)	(Power)	1500	1800	2000	2150	2300	2500
(Construction equipment)	ISO 3046/1(IFN)	P(kW)	35	43	46	49	51	54
	(Highly intermittent)	P(HP)	48	58	63	67	69	73
	ISO 3046/1(IFN)	P(kW)	34	40	44	46	49	51
	(Intermittent)	P(HP)	46	54	60	63	67	69
	ICFN	P(kW)	32	38	41	44	46
	(Continuous)	P(HP)	44	52	56	60	63
(Genset)	ICXN	P(kW)	34	40
(Genset)	(Continuous)	P(HP)	46	54
(Marine)	ICXN	P(kW)	32	38	41	44	46
	ICXN	P(HP)	44	52	56	60	63
	I0FN	P(kW)				49	51	54
	I0FN	P(HP)				67	69	73
