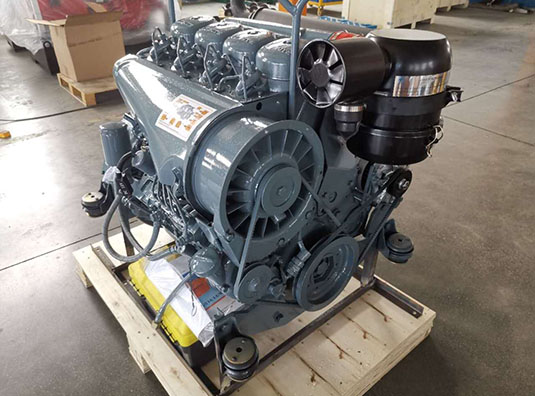

Deutz F4L913 F4L913T machinery engine,diesel motor

Deutz engine F4L913 F4L913T

Cylinder Number: 4 cylinder
Bore×Stroke: 102mm×125mm
Displacement: 4.086 Liters
Combustion Type: Direct injection
Dispalcement: 4.086 Liters
Cooling Way: Air cooled
Usage: Construction machinery, agriculture machinery, generator set, water pump, marine

Get Price Contact Download

share to :

Product Description:

4 cylinder Deutz 913 series engine F4L913 is naturally aspirated engine in inline arrangement.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Easy, inexpensive installation due to minimum weight and small installation space.
Best cold starting performance even under extreme conditions.
The robust engine design allows worldwide operation even with high sulphur fuels.
Highly efficient injection and combustion system ensures optimum engine performance at low consumption.

Technical Data:

In-line, 4Cylinder, 4 Cycle Diesel Engine
Bore×Stroke			100mm×120mm
Displacement			3.770 Liters
Compression Ration			17:01
Cooling Way			Air cooled
Combustion system			Direct injection
Inspiration			Natural intake
Direction of rotation			Counterclockwise(face to flywheel end)
Fuel consumption ratio			236.6g/kwh(limit value)
Oil consumption ratio			2.04g/kwh(limit value)
Lubricant Capacity			9.5Liters
Net Weight			400kg
Overall Dimension(L×W×H)			852mm×664mm×799mm
(Useage)	(Power class)	(Power)	(Speed)(rpm)
(Useage)	(Power class)	(Power)	1500	1800	2000	2150	2300	2500
(Construction equipment)	ISO 3046/1(IFN)	P(kW)	35	43	46	49	51	54
	(Highly intermittent)	P(HP)	48	58	63	67	69	73
	ISO 3046/1(IFN)	P(kW)	34	40	44	46	49	51
	(Intermittent)	P(HP)	46	54	60	63	67	69
	ICFN	P(kW)	32	38	41	44	46
	(Continuous)	P(HP)	44	52	56	60	63
(Genset)	ICXN	P(kW)	34	40
(Genset)	(Continuous)	P(HP)	46	54
(Marine)	ICXN	P(kW)	32	38	41	44	46
	ICXN	P(HP)	44	52	56	60	63
	I0FN	P(kW)				49	51	54
	I0FN	P(HP)				67	69	73
