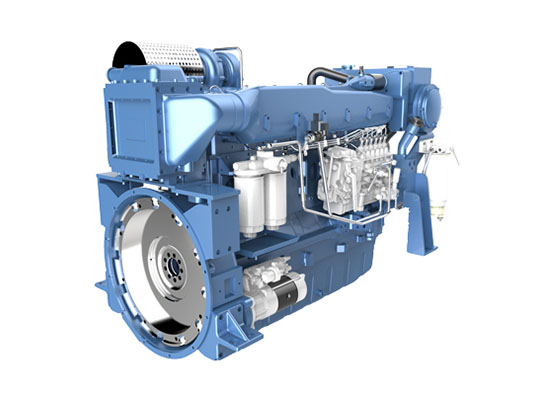

    Weichai WD10 series marine diesel engine (140-240kW)
    • Brand: Weichai
    • Model: WD10
    • Cylinder No.: 6 cylinder
    • Power: 140-240kW
    • Bore*Stroke: 126×130(mm)
    • Displacement: 9.726L
    share to :
    Product Description:
    Safe and reliable
    The high-strength design of the body, piston, bearing bush and other structural parts ensures the reliability of the diesel engine under high explosion pressure Important parts such as turbochargers, starters, high-pressure oil pumps, etc. are
    used by excellent global suppliers Withstood the most rigorous endurance test assessment to ensure the reliability of key
    components, the overhaul period of the whole machine is above 20000h Perfect self-diagnosis system, perfect failure protection mode, safe control strategy.

    Powerful
    Accurate control by electronic control unit, high fuel injection pressure, small speed fluctuation, strong power Low-speed high-torque design, torque reserve 25% -35%, quick response, fast speed increase.
    Economical and fuel-efficient
    Optimizing the fuel injection law, precise control of fuel injection pressure, fuel injection amount
    and fuel injection time, the fuel is fully atomized, and the minimum fuel consumption rate is 191g / kW • h
    Technical Data:
    Type Four-stroke, water cooled, in-line, turbocharged/turbocharged and intercooled Number of cylinders 6
    Cylinder diameter/stroke 126×130(mm) Displacement 9.726L
    Oil consumption rate ≤0.6g/kW·h Noise ≤99dB(A)
    Minimum fuel consumption rate 195g/kW·h Idle speed 600±50r/min
    Torque reserve 20-35% Rotation direction of crankshaft Clockwise
    DimensionsLength × Width × Height/net weight Turbocharged 1499×814×1164(mm) 1018kg                                                                              Turbocharged and intercooled, dry-type exhaust pipe 1447×960×1211(mm) 1056kg     Turbocharged and intercooled, water jacket exhaust pipe 1452×814×1418(mm) 1056kg
    Series Model Air intake mode Rated power kW/Ps  Speed r/min Speed Fuel feeding mode Emission level Power classification
    WD10 WD10C190-15 Turbocharged and intercooled 140/190 1500 Mechanical pump IMOⅡ P1
    WD10C218-15 Turbocharged and intercooled 160/218 1500 Mechanical pump IMOⅡ P1
    WD10C240-15 Turbocharged and intercooled 176/240 1500 Mechanical pump IMOⅡ P1
    WD10C240-18 Turbocharged and intercooled 176/240 1800 Mechanical pump IMOⅡ P1
    WD10C278-15 Turbocharged and intercooled 205/278 1500 Mechanical pump IMOⅡ P1
    WD10C278-21 Turbocharged and intercooled 205/278 2100 Mechanical pump IMOⅡ P1
    WD10C300-21 Turbocharged and intercooled 220/300 2100 Mechanical pump IMOⅡ P1
    WD10C312-18 Turbocharged and intercooled 230/312 1800 Mechanical pump IMOⅡ P1
    WD10C326-21 Turbocharged and intercooled 240/326 2100 Mechanical pump IMOⅡ P1
